Yamaha FS1r

Submitted by xangis on Sat, 2008-07-19 02:37.

Yamaha FS1R

Specifications:
Year Released: 1999
MSRP: $999
Tone Generator : Formant Shaping / FM Synthesis, LFO1/LFO2/Dynamic Filter/Pitch EG/Filter EG
Maximum Polyphony : 32 (without Filter) / 16 (with Filter)
Number of Multitimbral Parts : 4 parts (16 MIDI channels)
Operators : 8 Voiced Operator + 8 Unvoiced Operator per Voice
Algorithms : 88
Effects : 15 (Reverb), 28 (Variation), 40 (Insertion)
Patches: 1536 (1408 Preset, 128 User-Programmable)
Performances : 384 (256 Preset, 128 User-Programmable) to be made up of up to 4 part of Voice programs as layer/split

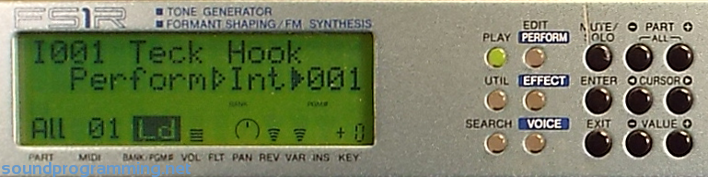

Display : LCD Custom (Character&Graphic) w/backlit LED 8
Compatibility : Receive DX7 MIDI Bulk dump (1 voice format only)
Connectors : Headphones, Stereo Output (L/ Mono, R), Individual Output (L/R), MIDI In/Out/Thru

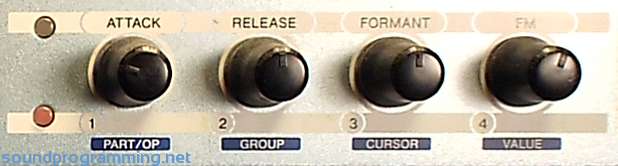

Controllers : Control Knob 4 Assignable / Fixed (Attack/Release/Formant/FM), Volume Knob
Dimensions : 480(W) x 235(D) x 44(H) mm
Weight : 2.6 kg
